- inch
- mm

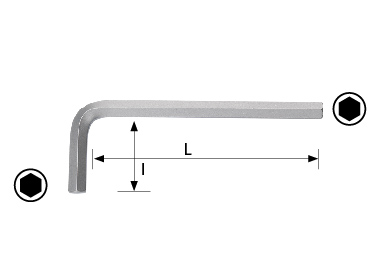

| Size inch | L x l inch | 0.05 | 1.66 X 0.53 |
|---|---|
| 1/16 | 1.75 X 0.56 |
| 5/64 | 1.88 X 0.61 |
| 3/32 | 2.00 X 0.66 |
| 7/64 | 2.13 X 0.70 |
| 1/8 | 2.25 X 0.75 |
| 9/64 | 2.38 X 0.80 |
| 5/32 | 2.50 X 0.85 |
| 3/16 | 2.75 X 0.94 |
| 7/32 | 3.00 x 10.3 |
| 1/4 | 3.25 X 1.13 |
| 5/16 | 3.75 X 1.25 |
| 3/8 | 4.25 X 1.38 |
| 7/16 | 4.75 X 1.50 |
| 0.05 | 2.85 X 0.53 |
| 1/16 | 3.00 X 0.56 |
| 5/64 | 3.19 X 0.61 |
| 3/32 | 3.38 X 0.66 |
| 7/64 | 3.56 X 0.70 |
| 1/8 | 3.75 X 0.75 |
| 9/64 | 3.94 X 0.80 |
| 5/32 | 4.13 X 0.85 |
| 3/16 | 4.50 X 0.94 |
| 7/32 | 4.88 X 1.03 |
| 1/4 | 5.25 X 1.13 |
| 5/16 | 6.00 X 1.25 |
| 3/8 | 6.75 X 1.38 |
| 7/16 | 7.50 X 1.50 |
| Size mm | L x l mm |
|---|---|
| 1.5 | 44 X 13 |
| 2 | 49 X 15 |
| 2.5 | 54 X 17 |
| 3 | 61 X 19 |
| 4 | 68 X 24 |
| 5 | 78 X 27 |
| 5.5 | 83 X 30 |
| 6 | 88 X 32 |
| 7 | 92 X 33 |
| 8 | 97 X 35 |
| 10 | 109 X 39 |
| 12 | 122 X 44 |
| 1.5 | 61 X 13 |
| 2 | 74 X 15 |
| 2.5 | 83 X 17 |
| 3 | 88 X 19 |
| 4 | 98 X 24 |
| 5 | 113 X 27 |
| 5.5 | 127 X 30 |
| 6 | 133 X 31 |
| 7 | 137 X 33 |
| 8 | 147 X 35 |
| 10 | 167 X 39 |
| 12 | 187 X 44 |
| 1.5 | 89 X 13 |
| 2 | 99 X 15 |
| 2.5 | 110 X 17 |
| 3 | 124 X 19 |
| 4 | 138 X 24 |
| 5 | 158 X 27 |
| 5.5 | 167 X 30 |
| 6 | 178 X 31 |
| 7 | 187 X 33 |
| 8 | 197 X 35 |
| 10 | 221 X 39 |
| 12 | 247 X 44 |
